FX – EXPANDER

PREPARATORY

FX – EXPANDER

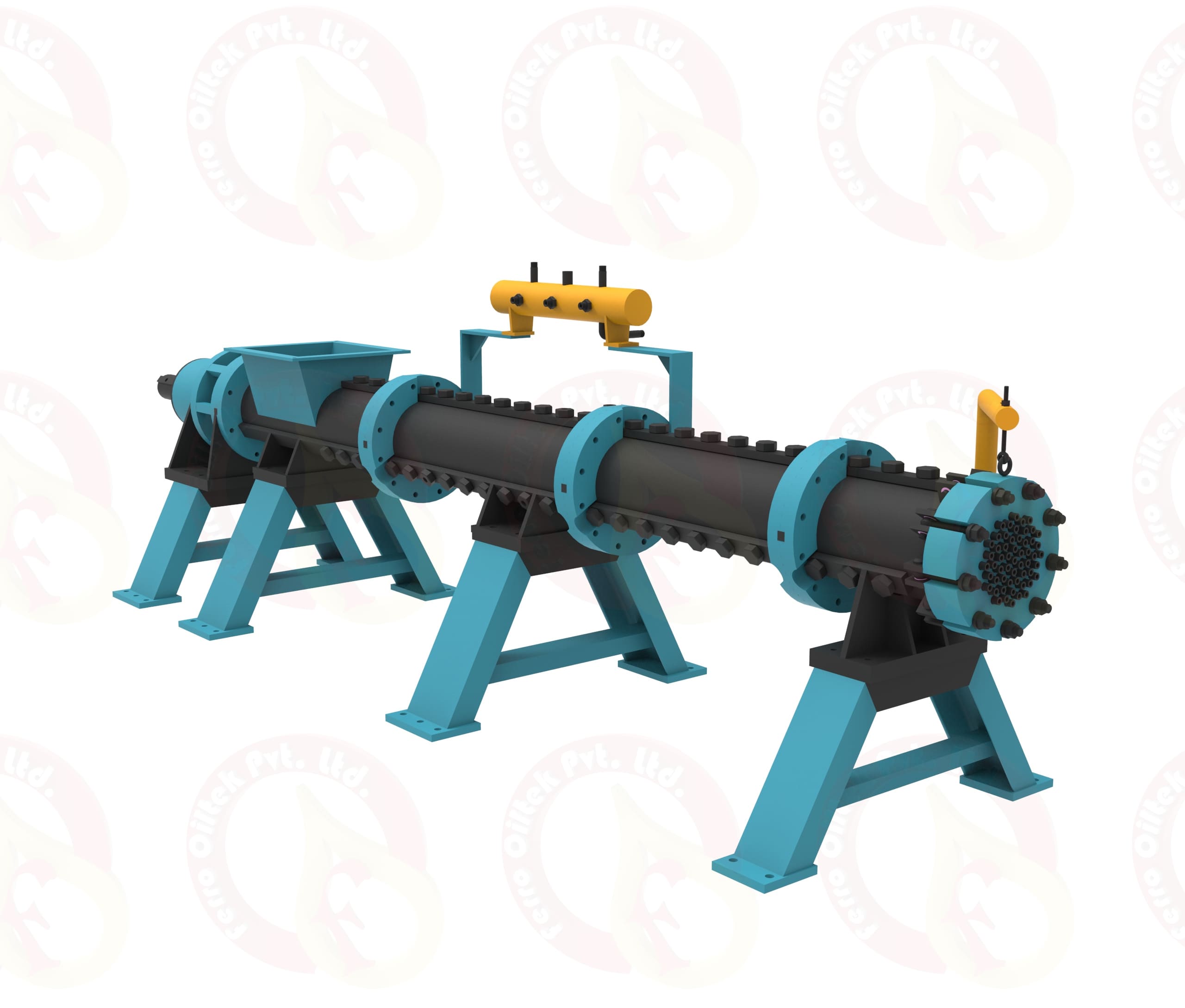

Ferro Expanders are interrupted flight screw machines that generate a high pressure and high shear environment to perform work on a material in various applications. An electric motor supplies the power through a gear box or v- belt drive to rotate a shaft within a fixed and sealed tube of continuous diameter.

The discharge of our Expander machine is fitted with an adjustable orifice called a choke, which is used to control the pressure at the end of the machine and to aid in the formation of a specific round shape for the final product called as Pellets/Collets.

Due to increased density and porosity created by the Expander the solvent plant can see up to a 50% increase in capacity, 40% reduction in solvent hold-up in the solid product and 20% reduction of solvent carry-over in the liquid product.

  • It has equi-distant steam ports throughout the main body, helping in uniform conditioning.
  • Rigid and Steady body for the machine as it generates high force while pressing.
  • Efficient power consumption by the Expeller motor providing suitable required torque.
  • Reduces fines generation.
  • Hydraulic adiabatic attachment for oil recovery.
  • The expanded product coming out of Ferro Expander can be 50% more dense than flakes
  • You can squeeze 50% more material into the same space allowing for dramatic increases in rates
  • Pellets/Collets provides maximized surface area for oil extraction for the meal
  • Provides highly porous structure for efficient extraction in Extractor due to easy percolation

Sr No

Model

Capacity

Power

RPM

1

FEX  801                          8"

100 MT

100 HP

257

2

FEX  802                         10"

400 MT

150 HP

257

3

FEX  803                         12"

800 MT

200 HP

257
