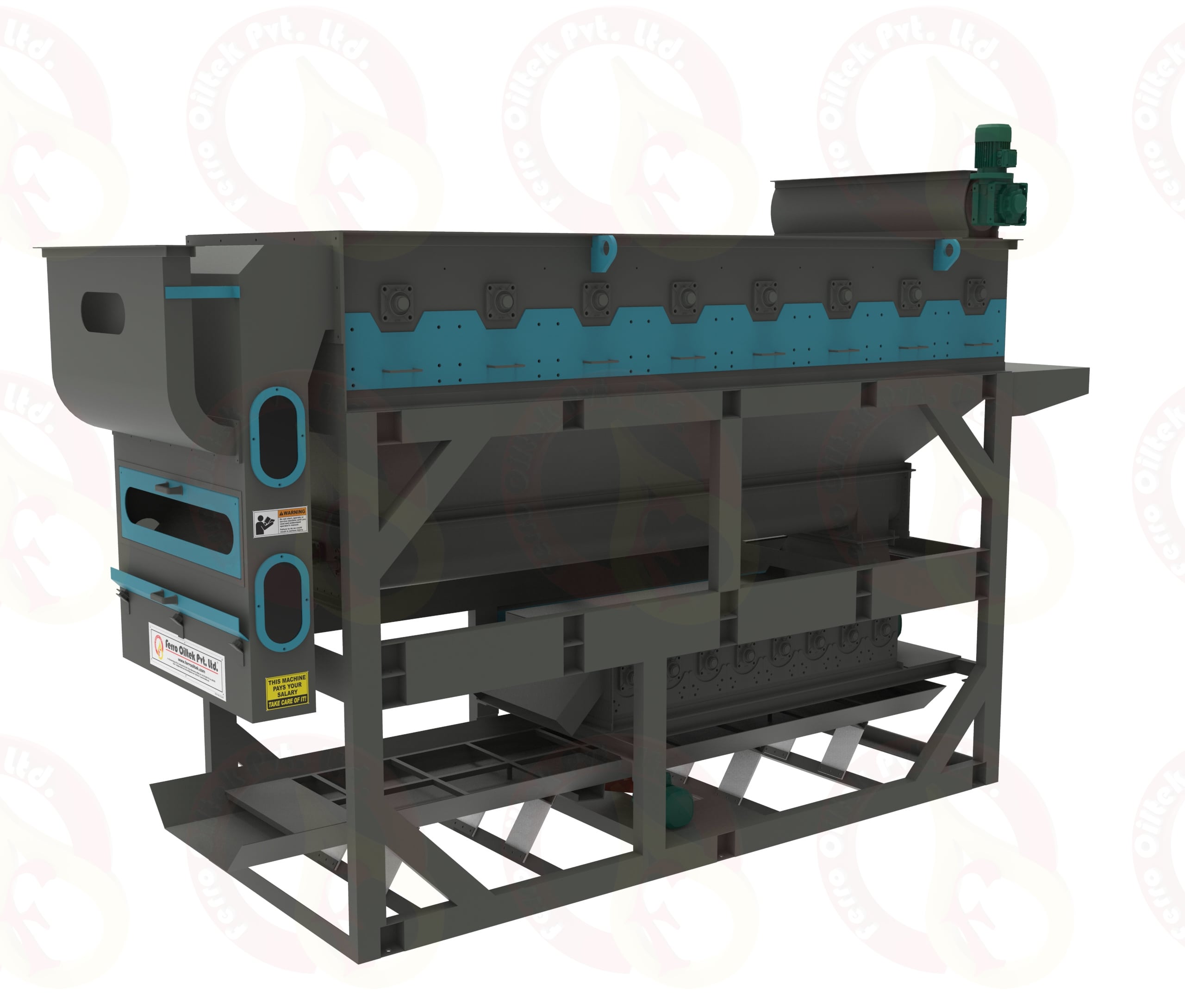

“7 STAGE LINT CLEANER” with basket beater section designed for lint cleaning i.e. for removing ﬁne dust, hulls etc. Re-engineered friendly design is capable of handling the capacity of more than 8 to 12 tons per day. The linter cellulose yield is maintained at maximum. This lint cleaner have a removable screen for cleaning at desired interval.
Low maintenance, because we provide twin conveyor which eliminates the elevated shaker tray. Special square bar screen available for higher cellulose yield. This lint cleaner provides highest capacity & good quality of lint according to today's market need. Dirty linter recycling system for higher yield of cotton linter.

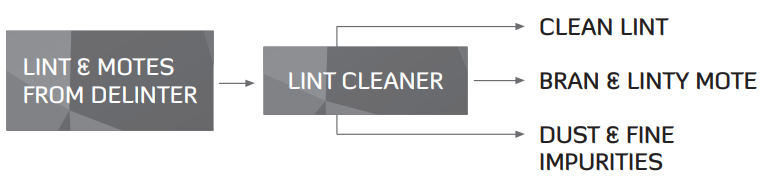

Output of delinter i.e. lint is fed into lint cleaner basket beater.
During beating of lint & motes, sticky dust & ﬁne Impurities are stretched out.
At the end of series basket beater, the lint falls into special air cascade device, here the
controlled air can lift the pure lint, ﬁne hulls & other impurities gets fall down.
The meshed down impurities containing linters gets collected through twin conveyor &
then move for second stage beater.
After second stage beating, the meshed down ﬁne linters with dust gets collected into the ﬁnal shaker tray & ﬁnally after shaker tray, the ﬁne linters from second basket beater gets recycled pneumatically.
Heavy body FEA Analyzed Structure for zero vibration. Special Vacuum Feeder for proper distribution.
Electrical Motors are conveniently located for ease of maintenance.
Soft Starter and Hardened sprockets for beater drive. Zero speed sensor for beater drive available.
Common drive for twin roll conveyor.
Beater screen mounted in easy pull trays for quick change and ease of maintenance.
Feeder Motor = 1HP/1.5HP/4 pole
Top Beater = 7.5HP/10HP/6 Pole
Twin Conveyor = 2HP/3HP/4 Pole
Bottom Beater = 3HP/5HP/4 Pole
Shaker Tray =1.5HP/6 Pole
AIR HOODS = 10” DIA.
