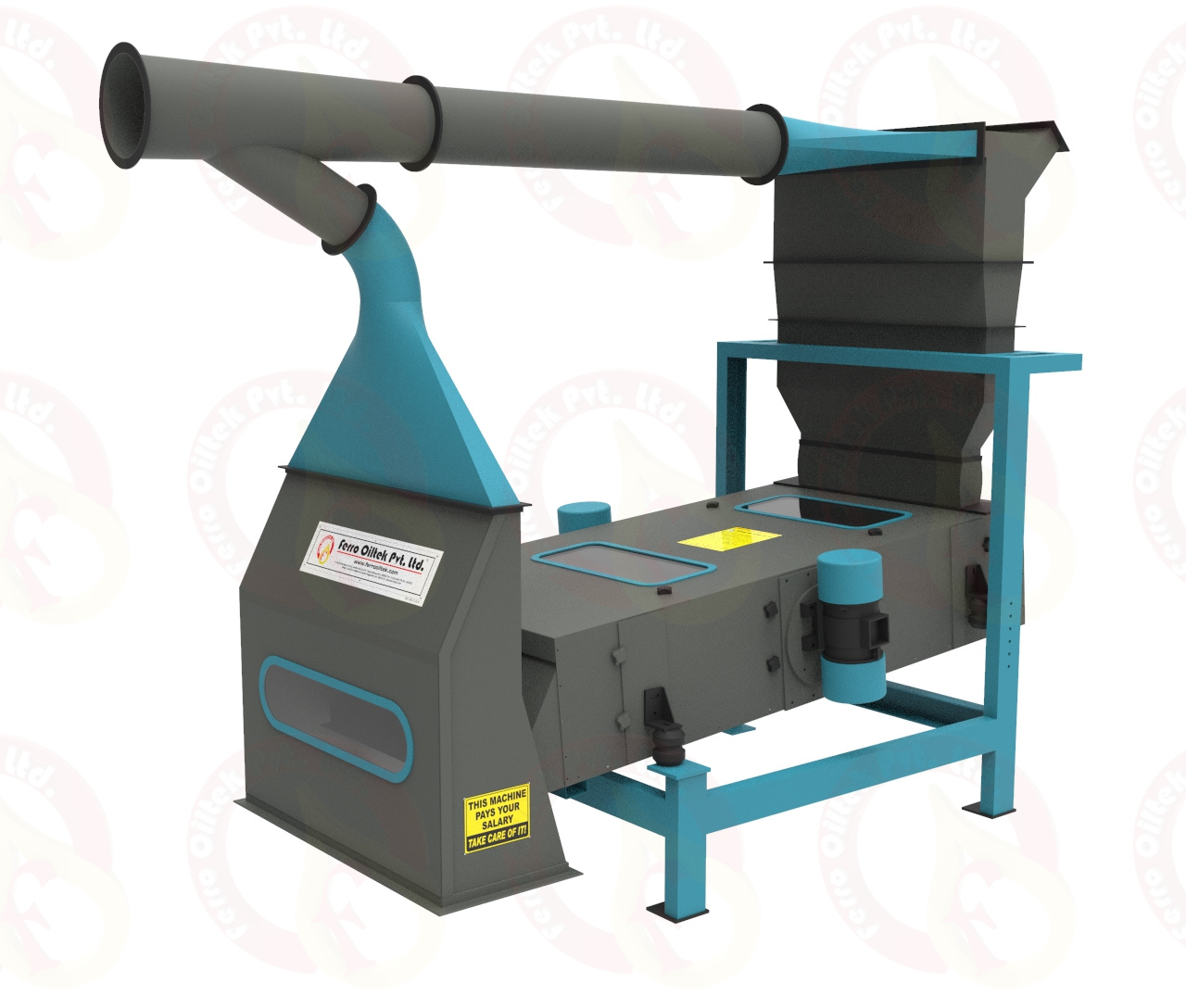

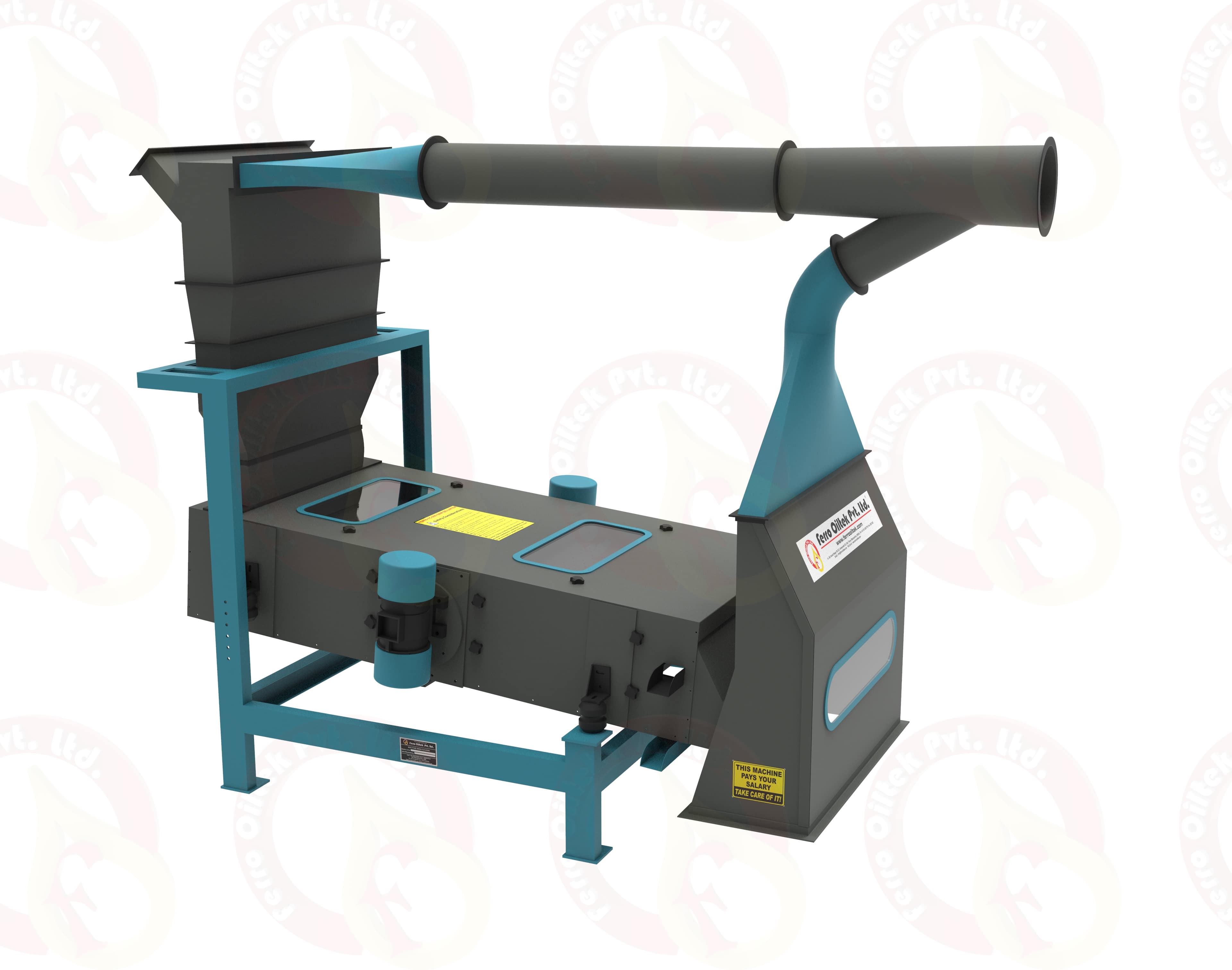

FX-BTSC : Box Type Seed Cleaner

SEED PROCESSING

FX-BTSC : Box Type Seed Cleaner

Ferro – New design Box type seed cleaner, with having high efficiency for removing all impurities from soybean, maize, grain, coffee, nut’s etc. and also all type of vegetable oil seeds. This machine is available at aspirator unit, for dust free atmosphere in the processing area. Ferro provide special magnet plate into the cascade hopper to avoid the metal pieces entering.

OPERATION OF BOX TYPE SEED CLEANER :

FX-BTSC : Box Type Seed Cleaner

The oil seeds fed into the seed cleaner machine through feed chute of cascade hopper & which is installed at the beginning of tray & above seed cleaner machine. With the help of cascade hopper distribution of seeds properly done to cover full width of upper tray.

Two vibratory motor provided on either side of machine and developed the vibration and by proper vibration we avoid the chocking of perforated screen holes.

All larger size unwanted impurities left on upper tray & fine size, dust that all are dropped down on lower tray, and clean seeds collected from discharge hopper through air aspirator.

  • With very high cleaning efficiency
  • Maintenance cost low
  • Low noise operation
  • Simple & modern design

Vibratory tray having rubber balls for self cleaning of perforated screen holes The machine having high capacity and low power consumption.
