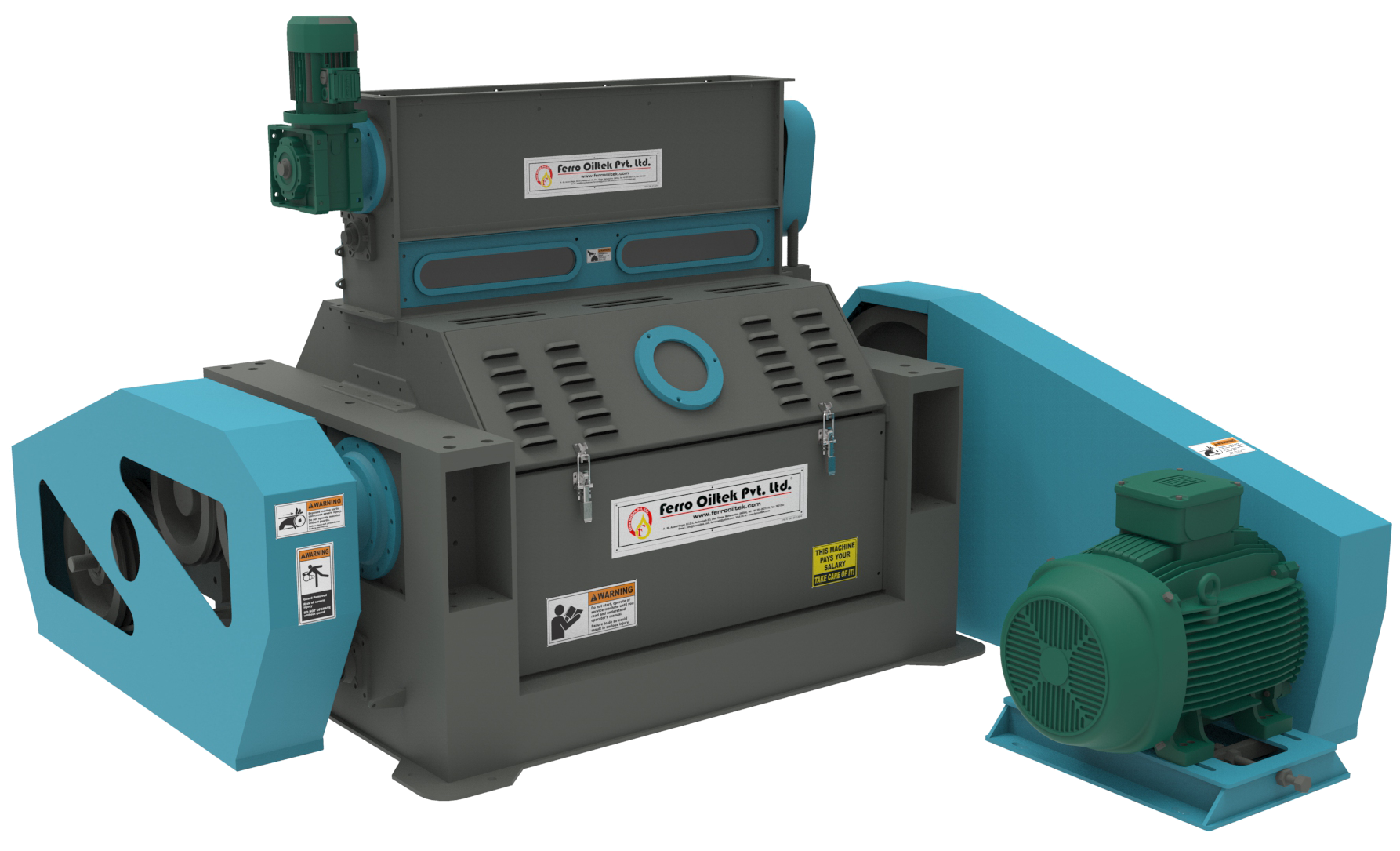

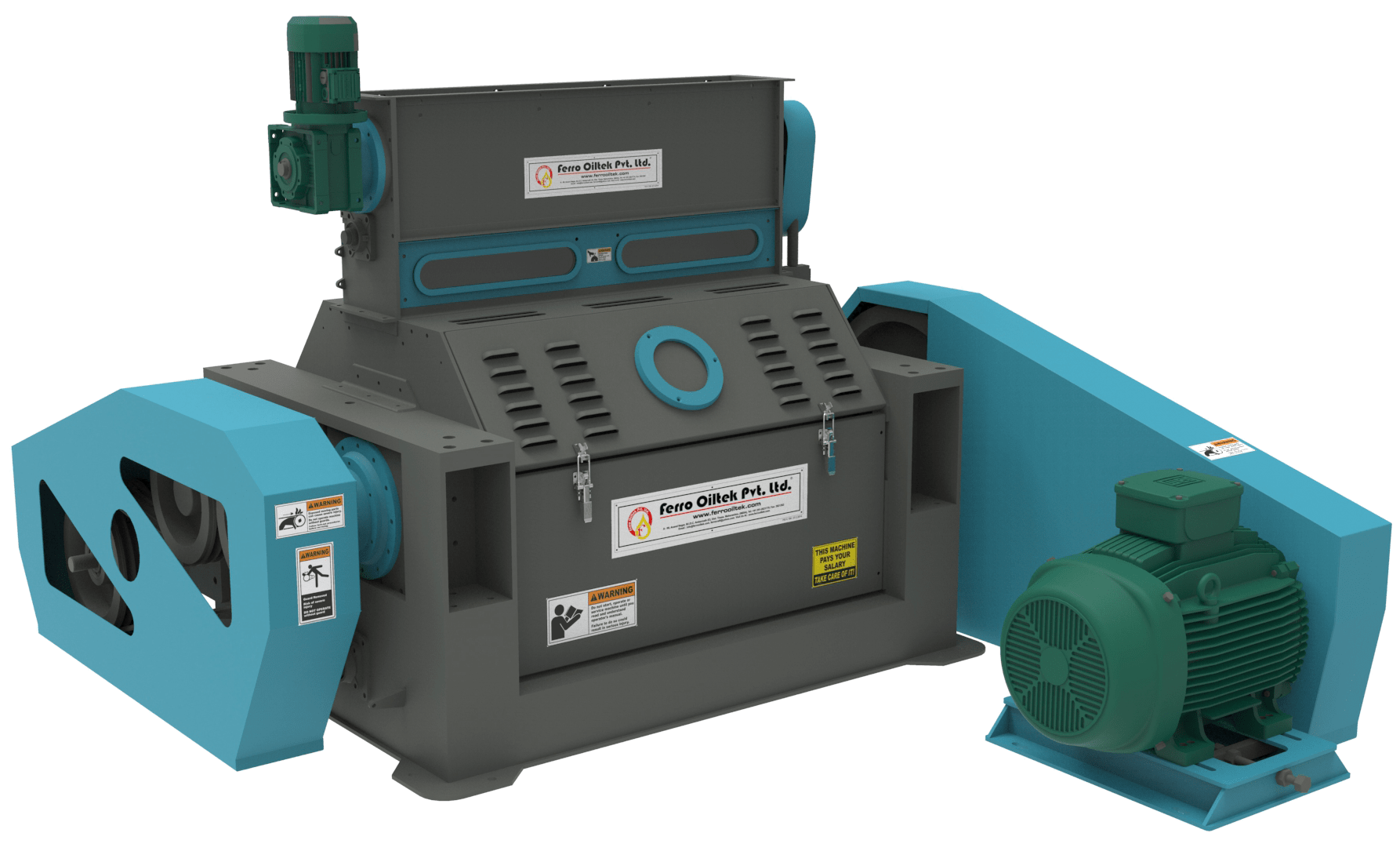

FX-FK : Ferro High Performance Edible Oilseed Flaker
Flaking is a critical step in oilseed processing that enhances oil yield and extraction efficiency. FX-Flaker machine produced Properly flaked seeds ensure:
- Improves oil release during mechanical pressing or solvent extraction
- Ensures better permeability for solvent penetration
- Properly flaked seeds extract more oil with less energy
- Lowers extraction costs and improves oil quality
- Uniform flakes improve meal texture and protein retention
FX series Flaker can produce the flakes as thin as 0.25mm.
| Technical Specification | |||||
| Model | Capacity | Roll Dimensions (MM) | Main Motor Power (kW) | Weight(Kg) | Dimensions (L X B x H) |
|---|---|---|---|---|---|
| FX-FK4510 | 100 | 450 x 1000 | 2 x 18.5 | 5500 | 1600 x 1650 x 1800 mm. |
| FX-FK4512 | 150 | 450 x 1200 | 2 x 25 | 6000 | 1600 x 2200 x 1800 mm. |
| FX-FK6010 | 150 | 600 x 1000 | 2 x 30 | 9700 | 1900 x 1900 x 2000 mm. |
| FX-FK6012 | 200 | 600 x 1200 | 2 x 37.5 | 10700 | 1900 x 2200 x 2000 mm. |
| FX-FK8012 | 300 | 800 x 1200 | 2 x 45 | 17000 | 2340 x 2450 x 2200 mm. |
| FX-FK8016 | 350 | 800 x 1600 | 2 x 55 | 20600 | 2340 x 2750 x 2200 mm. |
| FX-FK8021 | 500 | 800 x 2100 | 2 x 75 | 30500 | 2340 x 3400 x 2300 mm. |
Note : The mentioned capacity depends on the input seed parameters.
Key Features
Specially designed chilled cast iron rolls ensure uniform flakes.
Energy-Efficient Drive System: use compound drive provision to drive both rolls
Flaker rolls are fully dynamically balanced and undergo 100% QC testing. This feature reduces the amperage load on the motor, prevents run-out issues.
A breaker, corrugated feeder rolls, and flow directors ensure uniform oilseed distribution across rolls, preventing bypass. Heavy-duty swing-out magnets provide reliable metal separation.
Automatic Hydraulic mechanism ensuring accurately adjustment gap between two rolls easily and very quickly.
All bearings used in the rotating parts are from leading brands like SKF, NTN, FAG, etc., ensuring minimal power consumption.
Designed with a heavy-duty fabricated machine body frame ensure zero vibration.
Provision of feed rate control ensures through VFD provide optimal accuracy, enhancing the overall efficiency of subsequent operations.
Safety guards with limit switches mitigate accident risks from rotating parts by triggering an instant shutdown if opened.
Easily opening lids enable fast, safe maintenance, while a bottom inspection window allows convenient product sampling.
