FX-Miscella Distillation
Efficient Miscella Separation :

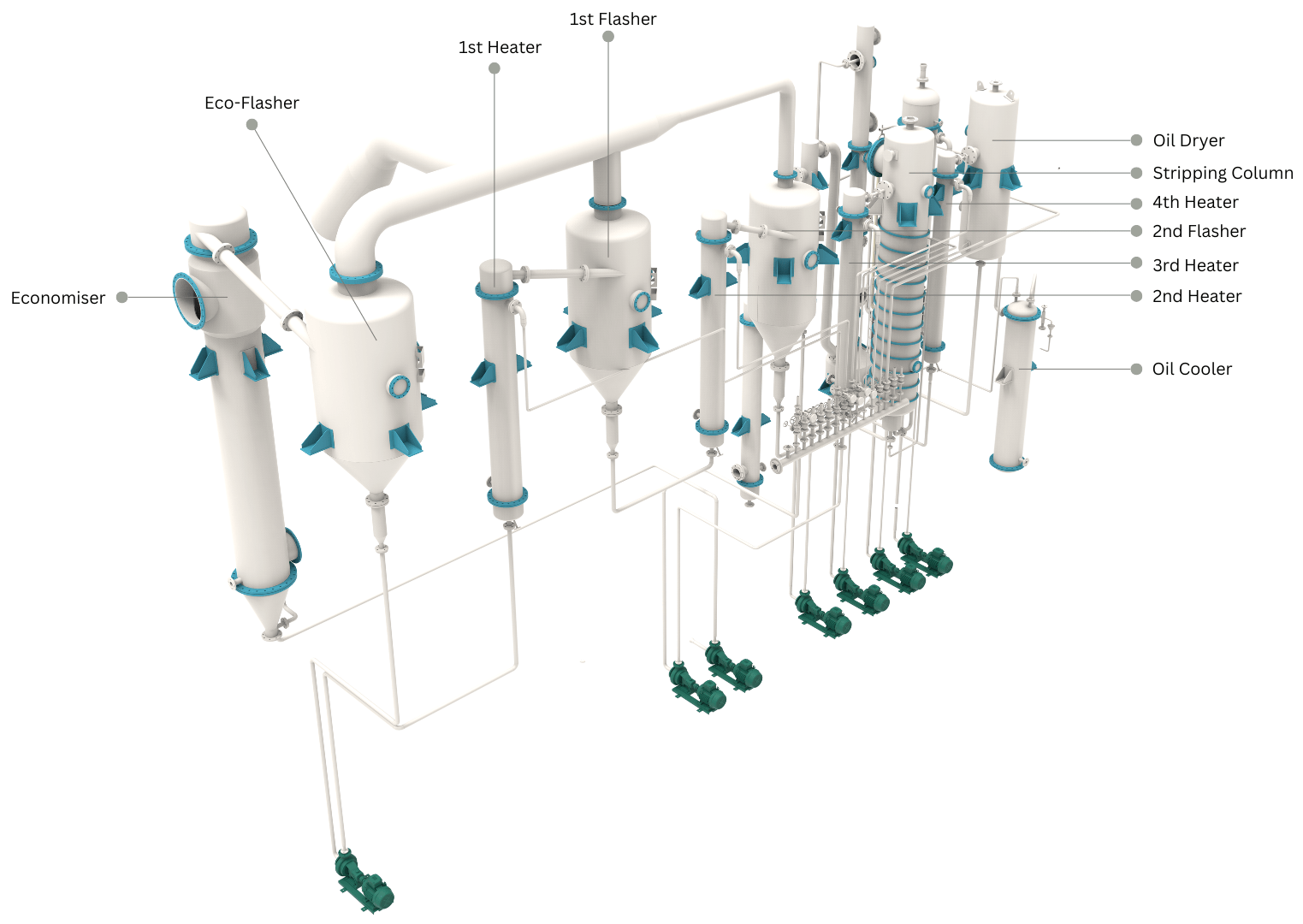

FX-Distillation equipment’s include distillation & Evaporator equipment, heat exchanger and other special equipment’s are precisely designed using mass balance calculations and heat transfer coefficients to efficiently separate thermally, yielding pure oil and solvent vapor.
- Easy-access manhole & hand hole for inspection and maintenance
- Providing Inspection windows for clear internal separation visibility.
- Robust Construction – Fabricated from corrosion-resistant stainless steel or carbon steel with protective coatings, ensuring durability and longevity.
- Optimized Stripping Column Geometry – Engineered with an optimal height-to-diameter ratio and structured internals (such as trays or packing) to enhance mass transfer, maximize contact area, and improve stripping efficiency.
- High-temperature gaskets, precision-cut via water jet, ensure accurate profiles and eliminate leakage.
Principais Recursos
Energy-Efficient Operation : utilisation of low steam consumption results reducing operational costs.
Precision automated steam control valves ensure a hexane is effectively vaporized without overheating the oil and improving the process efficiency.
Incorporates advanced recovery systems for enhanced sustainability.
Reengineered Hydro-Clones design enhanced hexane vapor separation.
Specialized Stripper & Dryer : Effectively removes solvent and moisture, ensuring superior oil quality.
Eco-Friendly Operation : Minimizes effluent generation, promoting a more sustainable process.
Self-Cleaning Design tubes Allows minimal sludge deposition to result maintaining constant heat transfer coefficient which improves overall efficiency of plant and minimum downtime.
Optimized Condensation System : Specially designed condensers ensure efficient solvent recovery at reduced vacuum across varying cooling water temperatures.
Advanced Vapor Absorption & Stripping: Captures uncondensed hexane from vent gases, preventing solvent loss and environmental impact.
Advantages of Ferro’s Advanced Stripping & Evaporation Design
Lower Residual Solvent in Oil
Achieved through maximized steam/oil contact, ensuring superior oil purity.
Innovative Sieve-Tray Stripper
More efficient than conventional disc/donut designs, enhancing solvent removal.
Energy-Saving Miscella Heating
Requires 15°C lower miscella temperature, reducing second-stage evaporator steam consumption and preserving oil quality.
High-Efficiency 2-Pass Evaporator
Ensures fast miscella tube velocity, significantly reducing tube fouling and cleaning frequency.
Minimal Oil Degradation
Lower heating requirements prevent crude oil deterioration before refining.
